6.5″ Speakers
TECHNICAL SPECIFICATIONS

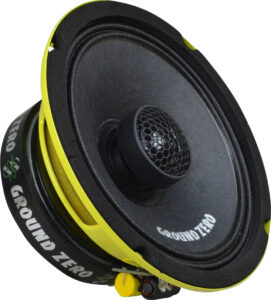

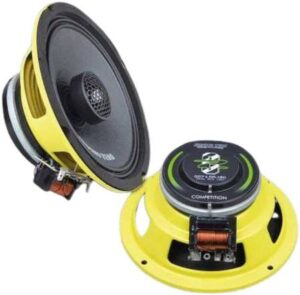

Ground Zero 6.5" Neo Coax Speaker
Features
- High-power 2-way coaxial loudspeaker
- Kippel optimized
- Neodymium motor with High efficiency (SPL)
- Fiber reinforced cone
- Waved form textile surround
- 1.5" Copper-clad aluminum wire voice coil
- Resonance free steel basket
- High excursion "W-Foam" surround
- 1.1" Mylar tweeter
- Hexagon protection grill
- Weather treated
- Sold in pairs
Additional Information
- Power Handling 100-250 watts
- Impedance 4Ω
- Efficiency 93 dB
- Freq Response 50-20kHz
- Mounting Depth 2.68"
$499.99
TECHNICAL SPECIFICATIONS
- 2-way car speakers (pair)
- 6-1/2" pressed paper woofer with weather-resistant treatment
- 1-7/16" PEI dome tweeter with resettable solid-state tweeter protection circuit
- handles up to 100 watts RMS (200 watts peak power)
- frequency range: 100-20,000 Hz
- sensitivity: 96.5 dB
- top-mount depth: 2-1/4"
- cutout diameter: 5-11/16"
- grilles not included
$449.99
TECHNICAL SPECIFICATIONS
Product highlights:
- 6-1/2" midrange speakers (pair)
- designed for SPL competition
- water-repellent pressed paper cone
- handles up to 150 watts RMS (400 watts peak)
- frequency response: 100-10,000 Hz
- impedance: 4 ohms
- sensitivity: 97 dB
- grilles not included
- top-mount depth: 2-1/4"
- cutout diameter: 5-11/16"
$449.99
TECHNICAL SPECIFICATIONS
- Max Power 500 watts
- Nominal Power 250 watts
- Freq Response 80-21kHz
- Impedance 4Ω
- Sensitivity 102.7db
- 6.5″ High Efficiency 2-way Loudspeaker
- 1″ Aluminum Compression Style Tweeter
- Element Rated Cone Design
- Bi-Ribbed Treated Cloth Surround
- 1.5″ High Output Til Midrange Voice
- Protective Grill Included
- May require modification for 14 and up pods
- 98-13 Road Glide will need these adapters
- Sold in pairs
- Marine Speakers
Dimensions
- Depth 3.08"
- Cutout Diameter 5.67"
$299.50
TECHNICAL SPECIFICATIONS
1.5″ (38.1mm) Midrange voice coil
High-intensity NEO ring magnet
IP65 rated weather resistant Carbon fiber cone
Cloth surround
Stamped steel basket
Wide dispersion 1″ aluminum dome tweeter
Protective grill
$469.99
TECHNICAL SPECIFICATIONS
- Designed for 2014 + H-D® factory designed locations
- V8™ Dispersion Guide
- Exclusive Cicada Design for 360o sound from tweeter
- Rain or Shine™ all weather performance design
- Built-In 6dB crossover
- PEI tweeter dome for best sound dispersion
- Moisture resistant
- Brighter sound
- More efficiency
- Kevlar cone
- Extremely lightweight and strong
- Moisture resistant
- Maximized efficiency
- Copper wire voice coils offer great sound while generating less heat
- N45H Neo Magnets
- High temperature resistant Polycarbonate custom tooled basket
- UV protection over all surfaces
- 5-inch Grills and Hardware are included
- Two (2) year warranty
Specification:
- 4Ω / 6.5-inch high performance coaxial driver
- Power handling: 100W RMS/200W MAX
- Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
- Cone: Kevlar
- Tweeter Dome: PEI
- Magnet: Neodymium
- Sensitivity: 93dB
- Frequency response 55 Hz – 20 kHz +/- 3dB
- Mounting Depth: 2.26-inch/57mm
- Mounting Diameter: 5.43-inch/138mm
$479.99
TECHNICAL SPECIFICATIONS
URES
- Designed exclusively for 2014 to current H-D® factory designed locations
- Rain or Shine™ all weather performance design
- OFC Copper shorting ring for extended high frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty
SPECIFICATIONS
- 4Ω / 6.5-inch mid-bass driver
- Power Handling: 250W RMS / 500W MAX
- Voice Coil: 2-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94 dB, 1W / 1M
- Frequency Response: 70 Hz – 10 kHz +/- 3 dB
- Mounting Depth: 2.3-inch/58mm
- Mounting Diameter: 5.7-inch/144mm
$499.99
TECHNICAL SPECIFICATIONS
FEATURES
- Designed exclusively for 2014 to current H-D® factory designed locations
- Rain or Shine™ all weather performance design
- OFC Copper shorting ring for extended high frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty
SPECIFICATIONS
- 4Ω / 6.5-inch mid-bass driver
- Power Handling: 250W RMS / 500W MAX
- Voice Coil: 2-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94 dB, 1W / 1M
- Frequency Response: 70 Hz – 10 kHz +/- 3 dB
- Mounting Depth: 2.3-inch/58mm
- Mounting Diameter: 5.7-inch/144mm
$449.99
TECHNICAL SPECIFICATIONS
- 500WRMS/1000 MAX Power Handling- PAIR
- Frequency Response: 75Hz -20Khz+/-5dB
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 2.0” 2Ω or 4Ω – High Temp Voice Coil (Black Coat™) Voice Coil MidBass
- Shortening Ring for the Ultimate in speaker control
- 1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- High Sensitivity:4dB / 99dB 1W/1M Average (1W/1M – 2.83V)
- 12dB Crossover with custom tooled/ Vented crossover case
- Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
- Mounting Depth: 3.0” / 76.2mm
- Mounting Diameter: 5.7” / 145.5mm
- Pods need to be modified on 15 up RG
- SOLD IN PAIRS
- Weather treated
$549.99
TECHNICAL SPECIFICATIONS

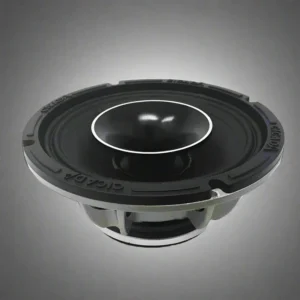

All Weather 6.5 Pro Coaxial Driver Speaker
A Weatherproof Horn Cover is included on the compression driver.
SPECIFICATIONS:
- 4Ω or 2Ω– 6.5-inch PRO coaxial horn driver
- Freq response range 70hz-20Khz +/- 4dB
- Sensitivity: 92dB, 1W / 1M
- Power handling: 300W RMS/600W MAX
- Voice Coils: 2.0”/51mm mid-bass & 1.75”/44mm Tweeter
- High-temperature Design
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Mounting Depth: 2.64"
- Mounting Diameter: 5.67"
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Rain or Shine™ all-weather performance design
- Available in 4 or 2Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- 1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat
$699.99
8″ Speakers
TECHNICAL SPECIFICATIONS
Features
- 2-way coaxial speaker system
- Pressed paper cone
- High-excursion foamed W-surround
- Resonance free steel basket
- 25 mm / 1″ Mylar tweeter
- Ferrite motor
- 6 dB/oct high pass filter
- Incl. Hexagon style protection grill
- Sold in pairs
- Weather treated
Additional Information
- Power Handling 150 / 300 Watts
- Impedance 4Ω
- Efficiency 94 dB
- Freq Response 40-20kHz
- Mounting Depth 3.43
$251.99
TECHNICAL SPECIFICATIONS

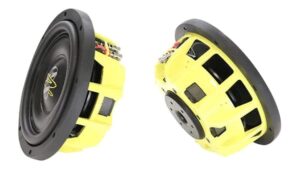

With its shallow mounting depth of just over 4”, its power handling of 600 WRMS, and its love of smaller enclosures, this subwoofer is going to allow for installs to be a little more fun to listen to. From vented or sealed truck boxes, spare tire enclosures, and even some OEM sized saddle bags and side by side enclosures.
- 8″ high quality SPL subwoofer with shallow installation depth
- Klippel Optimized
- sandwich Paper Cone
- Durable U Shape Rubber Surround
- Massive Aluminum Cast Basket
- 4 Layer copper voice coil
- 2" copper voice coil
- Chrome Plated Push Terminal
- 2 x 2 ohm - 500 / 800 Watts (RMS/SPL)
- Sold Single
- Model High-Quality Flat SPL Subwoofer
- Diameter 25 cm / 8"
- Max. Excursion (Xmax) 29 mm / 1.14"
- Resonance Frequency (Fs) 31.5 Hz
- Equiv. Air Volume (Vas) 14.2 L / 0.50 cu.ft.
- Overall Quality (Qts) 0.41
- Sold in singles
$349.99
TECHNICAL SPECIFICATIONS

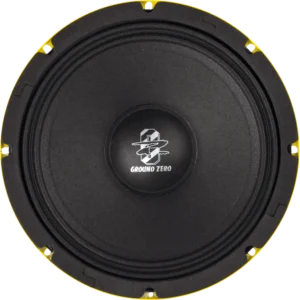

GZCK 200XSPL Midwoofer
-
- 8″ SPL midwoofer
- 38 mm / 1.5″ voice coil
- Fiber reinforced paper cone
- Long stroke foam surround
- Resonance free steel basket
- Paper dust cap
- Incl. protection grill
- Soldering terminal
- 1 piece / package
- Power handling WRMS - 150 W
- Power handling W peak - 300 W
- Impedance - 3.3 OhmSPL - 93 dB
- Frequency Response - 50 Hz - 6 KHz
- Sold in singles
- $179.99
TECHNICAL SPECIFICATIONS
- 8" midrange speakers designed for SPL competition (pair)
- ultra-light pressed paper cone with UV treatment and waterproofing
- handles up to 200 watts RMS (500 watts peak)
- high-pass filter recommended (150 Hz at 12 dB per octave)
- frequency response: 100-8,000 Hz
- impedance: 4 ohms
- sensitivity: 100 dB
- grilles not included
- top-mount depth: 3-3/8"
- cutout diameter: 7-3/16"
$549.99
TECHNICAL SPECIFICATIONS
- 2-way car speakers (pair)
- 8" pressed paper woofer with weather-resistant treatment
- 1-7/16" PEI dome tweeter with resettable protection circuit
- neodymium magnet for light weight
- handles up to 130 watts RMS (260 watts peak power)
- frequency range: 100-20,000 Hz
- sensitivity: 99.5 dB
- impedance: 4 ohms
- top-mount depth: 3-3/8"
- grilles included
$549.99
TECHNICAL SPECIFICATIONS
- 8" woofers designed for SPL competition
- pulp/cotton fiber cone
- polymer/rubber surround
- handles up to 250 watts RMS (500 watts peak)
- frequency response: 45-4,500 Hz
- impedance: 4 ohms
- sensitivity: 94.5 dB
- grilles not included
- top-mount depth: 3-5/8"
$349.99 PER PAIR
TECHNICAL SPECIFICATIONS
Specifications
- 8″ 2-Way Carbon Fiber Loudspeaker
- Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP54 Rated Weather Resistant Carbon Fiber Cone
- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide
- 12dB Passive Crossover Included
- Protective Grills Included
- Resonant Freq 48.1Hz
- D.C Coils 3.2Ω
- Impedance 4Ω
- Power Handling 650 watts
- Dynamic wattage 1250 watts
- Sensitivity 106.3 dB
- Depth 4.57"
- Sold in pairs
- All weather
$1199.99
TECHNICAL SPECIFICATIONS
High-Performance Mid Bass Speaker
The new Cicada Audio CM8.2 speakers are a great solution for 2014 and later Harley baggers. But...these speakers are NOT an easy fit into most bags. Typically, the bags are designed for 5 x 7's (sometimes 6 X 8's) and NOT 8 inch ROUND speakers. Just so you know...
Available in 4Ω or 2Ω ...the 2Ω get more output with smaller, higher efficiency / lower output amplifiers and don't NEED a giant "current hog" for an amplifier to drive these. The Cicada Audio 8" Mid Bass Speaker provides premium sound quality to better enjoy your music.
SPECS
- 500WRMS/1000 MAX Power Handling- PAIR
- Frequency Response: 75Hz -10Khz+/-5dB
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty / Die-cast Aluminum Basket
- 2.0" 2Ω or 4Ω / High Temp Voice Coil (Black Coat™) Voice Coil MidBass
- Shortening Ring for the Ultimate in speaker control
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- High Sensitivity: 94dB / 99dB 1W/1M Average (1W/1M - 2.83V)
- Total Diameter: 8.3" / 210.5mm
- Mounting Diameter: 7.1" / 180mm
- Mounting Depth: 3.6" / 91.2mmNvs Audio
- SOLD IN PAIRS
- Weather treated
FITMENT APPLICATIONS:
All Cicada Audio 8 inch MidBass and Coax Horns to need to be "CUSTOM" fitted. They do NOT drop in for an easy install (but neither does 95% of all 8 inches out there!!). These ALL NEED TO BE CUSTOM fitted.
$499.99
TECHNICAL SPECIFICATIONS

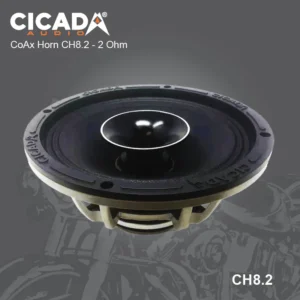

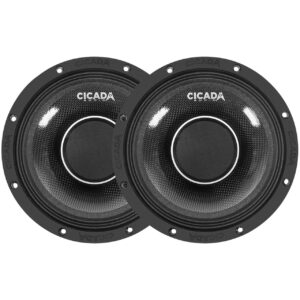

The new Cicada Audio CH8 speakers are a perfect solution for 2014 and later Harley baggers and other motorcycles. More output, lower frequency (NOT sub bass).
Available in 4Ω or 2Ω …the 2Ω get more output with smaller higher efficiency / lower output amplifiers and don’t NEED a giant “current hog” for an amplifier to drive these.
Specs:
- 500WRMS/1000 MAX Power Handling- PAIR
- Frequency Response: 75Hz -20Khz+/-5dB
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 2.0” 2Ω or 4Ω – High Temp Voice Coil (Black Coat™) Voice Coil MidBass
- Shortening Ring for the Ultimate in speaker control
- 1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- High Sensitivity: > 99dB 1W/1M Average (1W/1M – 2.83V)
- 12dB Crossover with custom tooled/ Vented crossover case
- Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
- Total Diameter: 8.3” / 210.5mm
- Mounting Diameter: 7.1” / 180mm
- Mounting Depth: 3.6” / 91.2mm
- SOLD IN PAIRS
- Weather treated
FITMENT APPLICATIONS:
All Cicada Audio 8 inch and 6 X 9’s are “CUSTOM “ fitted. They do NOT drop in for an easy install (but neither does 95% of all 6 X 9’s and 100% of ALL 8 inch. These are ALL CUSTOM fitted.
$579.99
TECHNICAL SPECIFICATIONS
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Removable threaded horn ring for easy modification
Rain or Shine™ all weather performance design
Available in 4- or 2-Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
External 12dB crossover with optional -3/-6 tweeter attenuator
4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
Water resistant treated paper cone
Lightweight / rigid
Maximized efficiency / super strong
Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:
2Ω – 8.0-inch coaxial horn driver
Power handling: 250W RMS/500W MAX
Voice Coils: 2.5-inch/64mm mid-bass & 1.4-inch/36mm Tweeter
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: water resistant treated paper cone
Magnet: Neodymium
Sensitivity: 95dB, 1W / 1M
Frequency response 75Hz – 20kHz +/- 3dB
Mounting Depth: 3.6-inch/91mm
Mounting Diameter: 7.1-inch/180mm
$649.99
TECHNICAL SPECIFICATIONS

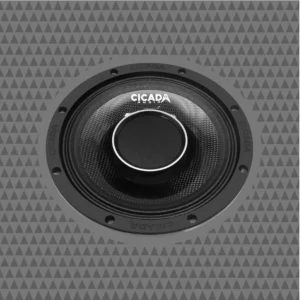

All Weather 8" Pro Coaxial Driver
A WEATHERPROOF HORN COVER IS INCLUDED ON THE COMPRESSION DRIVER.
SPECIFICATIONS:
4Ω – 8″ PRO coaxial horn driver
Power handling: 400W RMS/800W MAX each
Voice Coils: 2.5-inch/64mm mid-bass & 1.75-inch/44mm Tweeter
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 92dB, 1W / 1M
response 46Hz – 20kHz +/- 3dB
Mounting Depth: 3.3-inch/84mm
Mounting Diameter: 7.2-inch/182mm
FEATURES:
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Rain or Shine™ all-weather performance design
Available in 4- or 2-Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat
External 12dB crossover with optional -3/-6 tweeter resistor attenuator
Carbon Matrix Composite™ (CMC™) cone
Lightweight/rigid / high temp
Maximized efficiency / super strong
$799.99
TECHNICAL SPECIFICATIONS

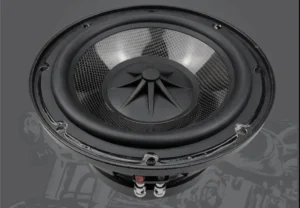

CMB8.S4 8″ PRO MID-BASS – 4 OHM
Features:
- 500WRMS/1000 MAX Power Handling
- Ferrite Magnet structure
- Heavy Duty / Die-cast Aluminum Basket
- 2.5” 4-Ohm / 6 Layer High Temp Voice Coil (Black Coat™)
- Vented Voice Coil Gap for Maximum Heat dissipation
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 35Hz -3Khz+/-5dB
- High Sensitivity: 87.2dB (1W/1M )
- Total Diameter: 8.3” / 211mm
- Mounting Depth: 3.9” / 99.5mm
- Mounting Diameter: 7.38” / 187.5mm
- SOLD INDIVIDUALLY
$449.99
6X9 SPEAKERS
TECHNICAL SPECIFICATIONS

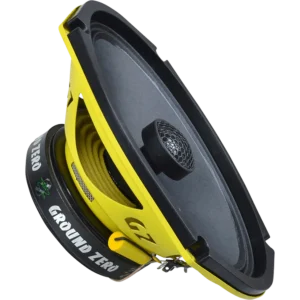

6×9″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter
- 2-way coaxial speaker system
- Pressed paper cone
- High-excursion textile surround
- Resonance free steel basket
- 25 mm / 1″ Mylar tweeter
- Ferrite motor
- 6 dB/oct high pass filter
- Incl. Hexagon style protection grill
- Sold in pairs
- Weather Treated
Additional Information
- Power Handling 150/300 watts each
- Impedance 4Ω
- Freq Response 50Hz-20KHz
- Depth 3.31"
$349.99
TECHNICAL SPECIFICATIONS

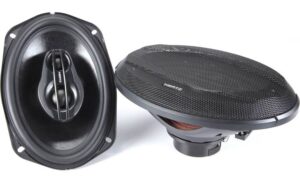

- 3-way car speakers (pair)
- 6"x9" pressed paper woofer with weather-resistant treatment
- PEI dome tweeter and 1" supertweeter with resettable solid-state tweeter protection circuit
- handles up to 130 watts RMS (260 watts peak power)
- frequency range: 65-24,000 Hz
- sensitivity: 94 dB
- top-mount depth: 3-3/8"
- grilles not included
$549.99
TECHNICAL SPECIFICATIONS
- Max Power 650 watts
- Nominal Power 325 watts
- Freq Response 75-18kHz
- Impedance 4Ω
- Sensitivity 101.3db
- 6x9″ High Efficiency 2-way Loudspeaker
- 1″ Aluminum Compression Style Tweeter
- Element Rated Cone Design
- Bi-Ribbed Treated Cloth Surround
- 1.5″ High Output Til Midrange Voice
- Protective Grill Included
- Mounting Depth 4″
- Sold in pairs
- Marine Speakers
$369.95
TECHNICAL SPECIFICATIONS
- 6″x9″ 2-Way Loudspeaker
- 1.5″ (38.1mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- IP52 Rated Weather Resistant Paper Cone with Cloth Surround
- Die-Cast Aluminum Basket with Radial Venting
- Wide Dispersion 1.25″ (28mm) Aluminum Dome Tweeter
- Resonant Freq 92.1Hz
- D.C Coils 3.2Ω
- Impedance 4Ω
- Power Handling 400 watts
- Dynamic wattage 800
- Sensitivity 96.5 dB
- Depth 3.31"
- All Weather
- Sold in pairs
$449.99
TECHNICAL SPECIFICATIONS
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 68.8Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 9.95 |
| Electrical Quality Factor (Qes) | 0.44 |
| Total Quality Factor (Qts) | 0.42 |
| Compliance Equivalent Volume (Vas) | 14.1L |
| Mechanical Compliance (Cms) | 0.20 mm/N |
| REPLACEMENT DIAPHRAGM: |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 92 dB |
| Frequency Response | 77Hz – 19KHz |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 3.18″ (80.80mm) |
| Cutout Diameter: | 8.66 x 6.45” / 220 x 164mm |
$549.99
TECHNICAL SPECIFICATIONS

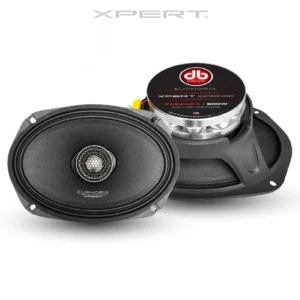

| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 78.1Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 10.75 |
| Electrical Quality Factor (Qes) | 0.35 |
| Total Quality Factor (Qts) | 0.34 |
| Compliance Equivalent Volume (Vas) | 10.6L |
| Mechanical Compliance (Cms) | 0156 mm/N |
| Efficiency (1W/1M) | 93.4 dB |
| REPLACEMENT DIAPHRAGM: EXNCD-RC |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 500 Watts |
| Dynamic Wattage | 1000 Watts |
| Sensitivity (1w/1m) | 93.4 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.42″ (112.30mm) |
| Mounting Diameter: | 5.82 x 8.66″ (148mm x 220.42mm) |
TECHNICAL SPECIFICATIONS
Rain or Shine™ all weather performance design
Available in 4- or 2-Ω versions
Carbon Matrix Composite™ (CMC™) cone
Lightweight / rigid / high temp
Maximized efficiency / super strong
Black coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
OFC copper shorting ring for extended high frequency performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:

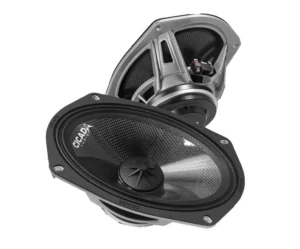

4Ω – 6X9-inch mid-bass driver
Power handling: 250W RMS/500W MAX
Voice Coils: 2.0-inch/51mm mid-bass
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 94dB, 1W / 1M
response 70Hz – 20kHz +/- 3dB
Mounting Depth: 3.7-inch/94mm
Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm
$499,99
TECHNICAL SPECIFICATIONS
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Removable threaded horn ring for easy modification
- Rain or Shine™ all-weather performance design
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional -3/-6 tweeter attenuator
- 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water-resistant treated paper cone
- Lightweight / rigid
- Maximized efficiency / super strong
- Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die-cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:

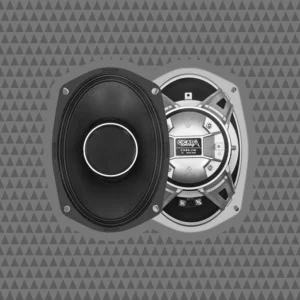

- 4Ω – 6X9-inch coaxial horn driver
- Power handling: 250W RMS/500W MAX
- Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone: water resistant treated paper cone
- Magnet: Neodymium
- Sensitivity: 95dB
- Frequency response 75Hz – 20kHz +/- 3dB
- Mounting Depth: 3.7-inch/93mm
- Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mm
$649.99
TECHNICAL SPECIFICATIONS

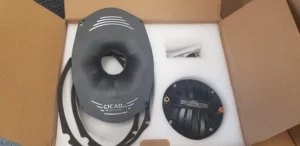

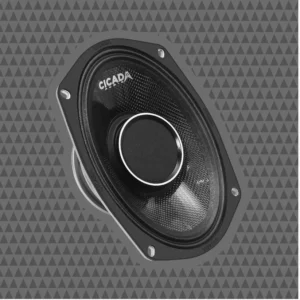

All Weather 6x9 Pro Coaxial Driver
A WEATHERPROOF HORN COVER IS INCLUDED ON THE COMPRESSION DRIVER.
SPECIFICATIONS:
4Ω – 6X9-inch PRO coaxial horn driver
Power handling: 400W RMS/800W MAX each
Voice Coil: 2.5-inch/64mm Mid-bass & 1.75-inch/44mm Tweeter
High-temperature design
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 92dB, 1W / 1M
response 46Hz – 20kHz +/- 3dB
Mounting Depth: 3.75-inch/96mm
Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Rain or Shine™ all-weather performance design
Available in 4 or 2Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat
External 12dB crossover with optional -3/-6 tweeter resistor attenuator
$799.99
10″ SPEAKERS
TECHNICAL SPECIFICATIONS

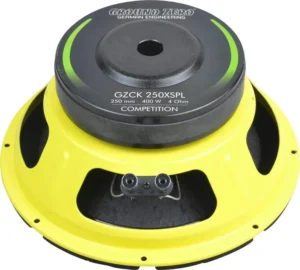

- 10″ SPL midwoofer
- 50 mm / 2″ CCA voice coil
- Fiber reinforced paper cone
- Long stroke foam surround
- Resonance free steel basket
- Paper dust cap
- Soldering terminal
- 1 piece / package
- Sold in singles
Additional Info
- Model SPL Midwoofer
- Diameter 9.84"
- Power Handling 400
- Impedance 4Ω
- Freq Response 40Hz-6KHz
- Voice Coil 2" CCA
- Mounting 9.25"
- Mounting Depth 4.33"
- Resonance Freq (FS) 44Hz
- Efficiency 93 DB
$239.99
TECHNICAL SPECIFICATIONS

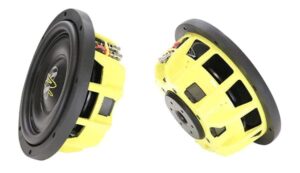

GROUND ZERO GZHW-10SPL-D2 FLAT
With its shallow mounting depth of just over 4”, its power handling of 600 WRMS, and its love of smaller enclosures, this subwoofer is going to allow for installs to be a little more fun to listen to. From vented or sealed truck boxes, spare tire enclosures, and even some OEM sized saddle bags and side by side enclosures.
- 10″ high quality SPL subwoofer with shallow installation depth
- Klippel Optimized
- Efficient Ferrite Magnet
- Durable U Shape Rubber Surround
- Massive Aluminum Cast Basket
- Paper sandwich cone
- 4 Layer copper voice coil
- High Roll U Surround
- Chrome Plated Push Terminal
- 2 x 2 ohm - 600 / 1000 Watts (RMS/SPL)
- Sold Single
- Model High-Quality Flat SPL Subwoofer
- Diameter 25 cm / 10"
- Max. Excursion (Xmax) 29 mm / 1.14"
- Resonance Frequency (Fs) 35.5 Hz
- Equiv. Air Volume (Vas) 19.7 L / 0.70 cu.ft.
- Overall Qaulity (Qts) 0.434
- sold in singles
$499.99
TECHNICAL SPECIFICATIONS
GROUND ZERO GZCW 10SPL HIGH-POWER MID-WOOFER
1000 WATTS MAX
- 10″ mid-woofer
- Klippel® optimized
- Non-pressed paper cone
- W-shape long stroke surround
- GZ-design aluminum cast housing
- 75 mm / 3″ copper voice coil
- Reinforced paper dust cap
- Compact screw terminals
- One piece/package
Additional Info
- High-Power SPL mid-woofer
- Diameter 25 cm / 10″
- Power Handling 500 / 1000 Watts
- Impedance 4Ω
- Freq Response 30 Hz – 2400 Hz (F-3 in the recommended enclosure)
- Voice Coil 75 mm / 3″ Copper
- Mounting 8.94″
- Mounting Depth 4.80"
- Resonance Freq (FS) 33Hz
- Efficiency 91 DB
- Equiv. Air volume (Vas) 50 L / 1.77 cu.ft.
$499.99
TECHNICAL SPECIFICATIONS
EXFW10NCF 10" Shallow Subwoofer
Features
• Power AES Handling: 400 Watts
• Dynamic Wattage: 1000 Watts
• Frequency Response: 35.813
• Sensitivity (1w/1m): 84.4dB
• Impedance: Dual 4Ω (3.6Ω + 3.6Ω)
• 10" Shallow Mount NEO Carbon Subwoofer
• 2.5″ (63.5mm) Voice Coil Diameter
• Weather Resistant Cone with Treated Surround
Dimensions
• Mounting Depth: 3.54"
• Cutout Diameter: 9.32"
Enclosure Specs
- Sealed .55ft3
- Vented .67ft3
$569.98
TECHNICAL SPECIFICATIONS

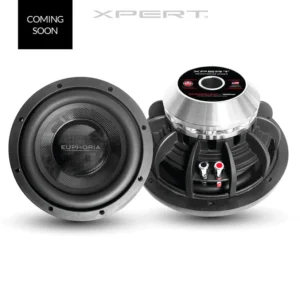

DB Drive Xpert EX10NMB-CFXL
Features
• Power AES Handling: 800 Watts
• Dynamic Wattage: 1600 Watts
• FS 41Hz
• Sensitivity (1w/1m): 92dB
• Impedance: 3Ω
• 3" Midrange Voice Coil
• IP52 Rated Paper Cone with Treated Rubber Surround
• Die-Cast Aluminum Basket with Radial Venting Dimension
$799.99
TECHNICAL SPECIFICATIONS

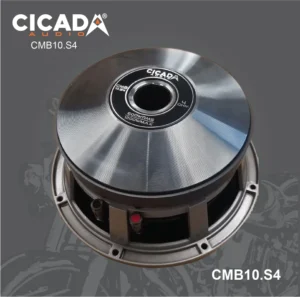

CICADA AUDIO CMB10.S4 PRO SOUND MIDBASS DRIVER
Features:
- 600WRMS/1200 MAX Power Handling
- Ferrite Magnet structure
- Heavy Duty / Die-cast Aluminum Basket
- 3.0” 4-Ohm / 6 Layer High Temp Voice Coil (Black Coat) Voice Coil
- Vented Voice Coil Gap for Maximum Heat dissipation
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 35Hz -1.75Khz+/-5dB
- High Sensitivity: 87.2dB (1W/1M )
- Total Diameter: 10.24" / 260mm
- Mounting Depth: 4.31" / 109.5mm
- Mounting Diameter: 8.98" / 228mm
- SOLD INDIVIDUALLY
The new Cicada Audio CMB10.S4 "MidBass" drivers are a great solution for Harley baggers and other motorcycles striving for the ultimate in midbass response. These are not an easy fit. These are designed for FULL custom builds. Fully custom installed utilizing Jefe or Nagy rings bag rings.
These drivers represent the next wave of products from Cicada Audio. These drivers handle more power, are louder, play lower, with more authority, and sound better right out of the box than any other pro-audio-type speaker for Harley applications. We've built these speakers with the best materials we can use and keep sensitivity and sound quality as high as possible. With 3-inch/ 6 Layer 4-ohm voice coils on the MidBass driver and a "Trick" dust cap. We've built in extreme sensitivity for unreal output and High power/High heat dissipation. These are not for the squeamish, and they are not lightweight. These speakers are way beyond all the competition.
$599.99
TWEETERS
TECHNICAL SPECIFICATIONS
MOTORCYCLE COMPRESSION DRIVERS AND HORNS

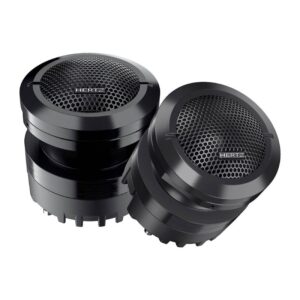

NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 25 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Kit” version, ST 25K Neo features metallic mesh grille and inline crossover filter included.
- 44 (1.8)
- 100 Hi-pass filtered @ 5 kHz - 12 dB Oct.
- 4Ω
- 3k ÷ 20k
- 107DB
- Powerful Neodymium magnet providing high performance with compact size.
- Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
- Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
- “Kit” version with metallic mesh grille and inline crossover filter included.
- Sold in pairs
$ 399.99

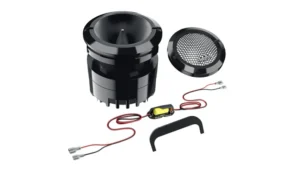

TECHNICAL SPECIFICATIONS
- Powerful Neodymium magnet providing high performance with compact size.
- FEM (Finite Element Method) optimized phase-plug and loading horn.
- CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
- Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
- Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
- Aluminium back cover for superior heat dissipation.
- Impressive low frequency extension and efficiency.
- “Kit” version with metallic mesh grille and inline crossover filter included.
Specification:
- Size mm (in.): 46 (1.8)
- Power Handling - Peak W: 120 Hi-pass filtered @ 4 kHz - 12 dB Oct.
- Impedance Ohms: 4
- Frequency response Hz: 2k ÷ 20k
- Sensitivity dB SPL: 109
- Voice coil Ø mm (in.): 35 (1.4)
- Magnet: Neodymium
- Cone/Dome: Aluminium
$599.99
TECHNICAL SPECIFICATIONS
- 1″ (25mm) Voice Coil
- Neodymium Magnet
- Aluminum Diaphragm
- High Sensitivity
- Aluminum Die-Cast Waveguide Construction
- Designed for Extreme SPL Output
- Sold in singles
SPECIFICATIONS:
- RMS Power Handling : 85 Watts
- Dynamic Power Handling : 125 Watts
- Sensitivity : 108 dB
TECHNICAL SPECIFICATIONS
MOTORCYCLE COMPRESSION DRIVERS AND HORNS

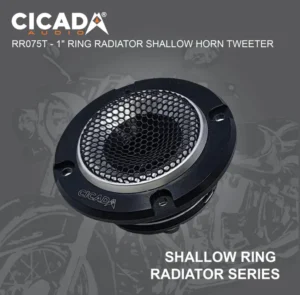

RR075T – 1” SHALLOW RING RADIATOR HORN TWEETER
- 200WRMS/400 MAX Power Handling- PAIR
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 4 Ohm for increased durability
- 1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 2Hz -20Khz+/-5dB
- High Sensitivity: 107dB 1W/1M Average (1W/1M – 2.83V)
- 12dB Crossover with custom tooled/ Vented crossover case
- Mounting Depth: 0.75” / 18mm
- Mounting Diameter: 2” / 50mm
- SOLD ONLY IN PAIRS
$279.99
TECHNICAL SPECIFICATIONS
MOTORCYCLE COMPRESSION DRIVERS AND HORNS

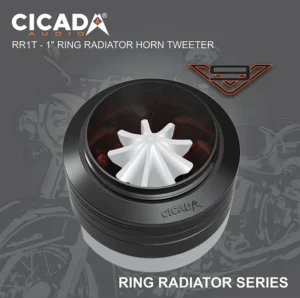

The new Cicada Audio RR1T Ring radiator Tweeters are a perfect solution for 2014 and later baggers, Harley or otherwise. These speakers are relatively easy fit. And Shallow. But still may need “Custom” installation. Making them PERFECT for custom coaxial mounting “in-grill” as it has been very popular as of late.
SPECS:
- 100WRMS/400 MAX Power Handling- PAIR
- Frequency Response: 2Hz -20Khz+/-5dB
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 4 Ohm for increased durability
- V9 Phase Plug for increased Dispersion and Increased Sound Quality (a Cicada Exclusive!)
- 1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- High Sensitivity: 107dB 1W/1M Average (1W/1M – 2.83V)
- 12dB Crossover with custom tooled/ Vented crossover case
- Mounting Depth: 1.625” / 41.3mm (measured from back of “bezel” mounting ring)
- Mounting Diameter: 2” / 50mm
- SOLD ONLY IN PAIRS
$249.99
TECHNICAL SPECIFICATIONS

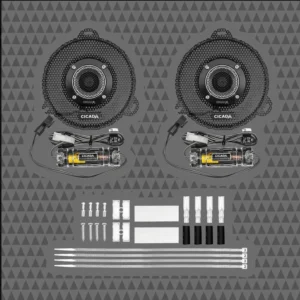

STREET GLIDE GRILL W/ Compression Drivers
MOTORCYCLE COMPRESSION DRIVERS AND HORNS
- Custom tooled Street Glide® Replacement Grill with our RR075T tweeter built-in. Designed for use with our CM65.2 or CM65.4 mid-bass drivers and sold in matched pairs.
- 100w RMS
- N35 Neo Magnet Motor
- 1.0″ – 4-ohm Voice Coil
- 107dB Sensitivity
- 2014 and up Harley Davidson Only
$399.95
TECHNICAL SPECIFICATIONS

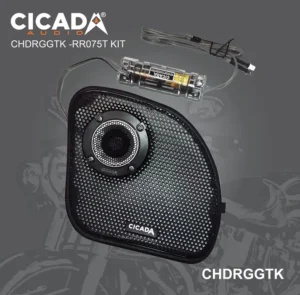

HD ROAD GLIDE “KIDNEY” GRILL W/TWEETER
MOTORCYCLE COMPRESSION DRIVERS AND HORNS
CHDRGGTK – HD ROAD GLIDE “KIDNEY” GRILL W/TWEETER
- 200 WRMS / 400 MAX Power Handling- PAIR
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 4 Ohm for increased durability
- 1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 2Hz -20Khz+/-5dB
- High Sensitivity: 107dB 1W/1M Average (1W/1M – 2.83V)
- 12dB Crossover with custom tooled/ Vented crossover case
- Custom Punched Road Glide Grills
- Mounting Depth: 0.75” / 18mm
- Mounting Diameter: 2” / 50mm
- SOLD IN MATCHED PAIRS
$354,99
TECHNICAL SPECIFICATIONS
MOTORCYCLE COMPRESSION DRIVERS AND HORNS
SPECS:
- 100WRMS/400 MAX Power Handling- PAIR
- Power handling 300/600 watts each
- 3" titanium voice coil
- Mounting depth 3.5"
- Frequency Response: 600Hz-18K
- FS 1200Hz
- 8 Ohm
- High Sensitivity: 117dB 1W/1M Average (1W/1M – 2.83V)
- SOLD ONLY IN PAIRS
$999.99
COMPONENT KITS
TECHNICAL SPECIFICATIONS

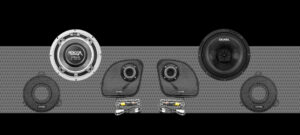

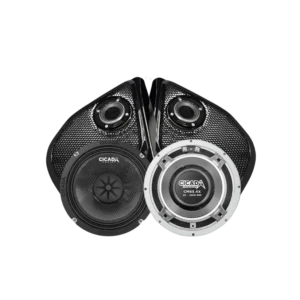

Cicada Audio 6.5" Mid-Bass 2-Way Component Speaker Kit
Built for 23.5 CVO to 24+ Road Glide Fairing Only
FEATURES:
- Designed for 2023.5-2024+ H-D® factory designed locations
- Brock Black Designs 3D Printed and black painted grills
- Rain or Shine™ all-weather performance design speakers
- OFC Copper shorting ring for extended high-frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, robust and high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die-cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty on 6.5 and compression driversTen0 business day lead time
- Grills are painted black
- Some assembly is required (nuts and bolts)
- Designed for use with aftermarket amplifiers
- It will work with stock amplifiers; however internal pod wiring may need to be slightly modified
SPECIFICATIONS:
- 2ohm OR 4ohm– 6.5-inch mid-bass driver
- Power handling: 250W RMS/500W MAX
- Voice Coils: 2.0-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94dB, 1W / 1M
- response 70Hz – 20kHz +/- 3dB
- Mounting Depth: 2.64-inch/67mm
- Mounting Diameter: 5.67-inch/144mm
- 4Ω – 1.0-inch shallow ring radiator horn tweeter
- Power handling: 200W RMS/400W MAX
- Voice Coils: 1.0-inch/25mm tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB-7kHz external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Magnet: Neodymium
- Sensitivity: 107dB, 1W / 1M
- response 2kHz – 20kHz +/- 3dB
- Mounting Depth: 0.75-inch/18mm
- Mounting Diameter: 2.0-inch/50mm
$749.99
TECHNICAL SPECIFICATIONS
FEATURES:
- Designed for 2014-2023 H-D® factory designed locations
- Rain or Shine™ all weather performance design
- OFC Copper shorting ring for extended high frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty
SPECIFICATIONS:
- 2Ω – 6.5-inch mid-bass driver
- Power handling: 250W RMS/500W MAX
- Voice Coils: 2.0-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94dB, 1W / 1M
- response 70Hz – 20kHz +/- 3dB
- Mounting Depth: 2.64-inch/67mm
- Mounting Diameter: 5.67-inch/144mm
- 4Ω – 1.0-inch shallow ring radiator horn tweeter
- Power handling: 200W RMS/400W MAX
- Voice Coils: 1.0-inch/25mm tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB-7kHz external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Magnet: Neodymium
- Sensitivity: 107dB, 1W / 1M
- response 2kHz – 20kHz +/- 3dB
- Mounting Depth: 0.75-inch/18mm
- Mounting Diameter: 2.0-inch/50mm
$649.99
TECHNICAL SPECIFICATIONS
MID-BASS FEATURES
- Rain or Shine™ all weather performance design
- OFC Copper shorting ring for extended high frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty
MID-BASS SPECIFICATIONS
- 4Ω / 6X9-inch mid-bass driver
- Power Handling: 250W RMS / 500W MAX
- Voice Coil: 2-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94 dB, 1W / 1M
- Frequency Response: 70 Hz – 10 kHz +/- 3 dB
- Mounting Depth: 3.26-inch/83mm
- Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm
TWEETER FEATURES
- Rain or Shine™ all weather performance design
- Aluminum tweeter dome diaphragm delivers brighter sound and maximized efficiency
- OFC Copper wire voice coil offers great sound while generating less heat
- Custom tooled, vented, encased external crossover
- Field replaceable diaphragm
- Aluminum die cast custom tooled backplate
- N35SH Neodymium magnet motor
- Two (2) year warranty
TWEETER SPECIFICATIONS
- 4Ω / 1-inch shallow ring radiator horn tweeter
- Power Handling: 50W RMS / 100W MAX
- Voice Coil: 1-inch/25mm tweeter
- Tweeter Dome: Aluminum
- Crossover: 12 dB @ 7 kHz
- Magnet: Neodymium
- Sensitivity: 101 dB, 1W / 1M
- Frequency Response: 2 kHz – 20 kHz +/- 3 dB
- Mounting Depth: 1.1-inch/28mm
- Mounting Diameter: 2-inch/50.8mm
$799.99
