Digital Signal Processor’s
TECHNICAL SPECIFICATIONS

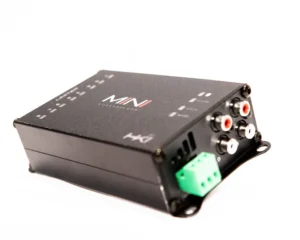

4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments.
- 8 Channel DSP
- 4 Balances RCA Inputs
- Max Input Level: 4Vrms(+14dBu)
- Input Impedance: 100KΩ
- 8 RCA Outputs
- Max Output Level: 3.5Vrms(+13dBu)
- Frequency Response: 10 Hz to 24 kHz (-1dB)
- THD+N: <0.01%
- Bit Rate: 32 Bits
- Sampling Frequency: 96 kHz
- Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct)
- Input EQ: 15 bands
- Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99)
- Time Alignment: 0 to 18.95ms
- Limiter Threshold: -54 to +6 dB
- Attack: 1 to 200 ms
- Release: 1 to 988ms
- Phase Control
- 3 Presets
- Dimensions: 5.9 x 4.3 x 1.7 inches
$299.99
TECHNICAL SPECIFICATIONS

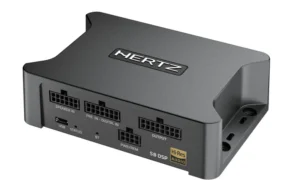

Weather Proof 8-Channel Digital Sound Processor
The ultra-compact S8 DSP is the best digital sound processor for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
The Hertz S8 DSP has many signal inputs and allows for fine tuning digital signals for the best sound output your car, motorcycle or marine audio system can produce.
Small and weatherproof – the best digital sound processor for motorcycles
- Compact size featuring all connections on one side to be installed anywhere
- Anti-corrosion-treated PCB to ensure years of listening pleasure in open nature
- Three different application setups: Car, Motorcycle, Free placement (boat, van, pick-up)
- Party & Ride presets, to optimize the sound performance in all conditions

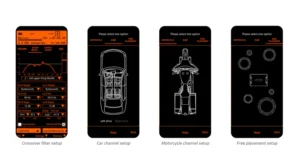

Configurable with a PC, a Mac, an Android device, or an iOS device
- IOS/Android control APPs (Bluetooth 5.0)
- DRC control over app from iOS/Android devices
Powerful DSP with the excellent sound quality you expect from Hertz
- Hi-Res audio (96 kHz/24-bit native resolution) for unparalleled audio quality
- 6-channel SPEAKER IN (2,5 – 21 Vrms) on a dedicated socket with a built-in USS
- (Universal Speakers Simulator)
- SPDIF coaxial input (up to 24bit/96KHz)
- 8-channel / 4Vrms-capable RCA output channels
- Signal Output Active Limiter prevents clipping
$399.99
TECHNICAL SPECIFICATIONS

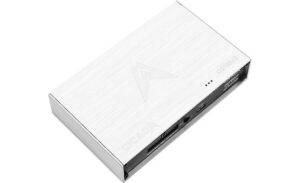

DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT
- Signal Input: 8 High-Low Level Inputs
- Signal Output: 8 RCA Outputs
- Output Impedance: 200 Ohms
- Frequency Response: 20Hz – 20kHz +/- 0.5Db
- Input Voltage: 0.02V – 12V
- Input Impedance: 20k Ohms
- Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to 2 V out, etc.)
- THD+N: <1.0%
- Signal-to-Noise: >100 dBA (A-weighted)
- Digital Signal Processing (DSP):
Speed: 147 MIPS Precision: 32-Bit Accumulators: 72-bit - Digital to Analog (DAC): Precision: 24-Bit
- Dynamic Range: 108 dB
- THD+N: -98 dB
- Analog to Digital (ADC): Precision: 24-Bit
- Dynamic Range: 105 dB
- THD+N: -98 dB
- Operating Voltage: 9 – 16 VDC
- Crossover Frequency: Variable: 20 Hz to 10 kHz
- Crossover Slope: Selectable Slope: 6/12/18/24/36/48 dB/Octave
- EQ Frequency Controls: Selectable Q: 0.05 to 20.0
- Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)
Cicada Audio’s patented Bluetooth digital signal processor gives you the ability to do DSP tuning and signal summing via app. Using the downloadable CA DSP app on your smartphone or tablet.
You can upload saved system settings from one DSP88 and load it into a different DSP88v2. (Think of the possibilities!
$374.99
